PO_AddSensorGrid

Add sensor grids for running Radiance grid based simulations. Use "Pollination" command to open Radiance Object Manager to check and edit each sensor grid. The input geometries can be generic Rhino Brep/Mesh geometries, or Pollination geometries such as rooms, room's child surfaces (aperture, door, shade), sub-surface (room's wall, or other type of faces selected by Shift+Ctrl+Click), and orphaned faces.

Options

• GridSize

  space between any two sensor points. (in Rhino's unit)

• Offset

  offset distance from the input geometries. (in Rhino's unit)

• MergeCoplanar

  set to true to merge all selected surfaces that are coplanar to create minimum amount of sensor grids as possible. (default: false)

• Filter

  filter currently selected geometries based on types (Floor, Wall, Roof, Window, Skylight, Door) if possible. (default: bySelected)

• ShrinkDist

  shrink distance from the input geometries' edges. (in Rhino's unit)

• QuadOnly

  set to true to only generate quad faces. (default: false)

Useful Links

Add Sensor Grid | Pollination Docs

Video Tutorials

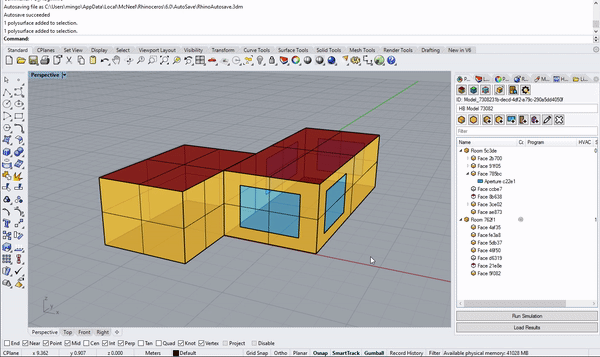

Add sensors to a Room and Room faces
