PO_AddRooms

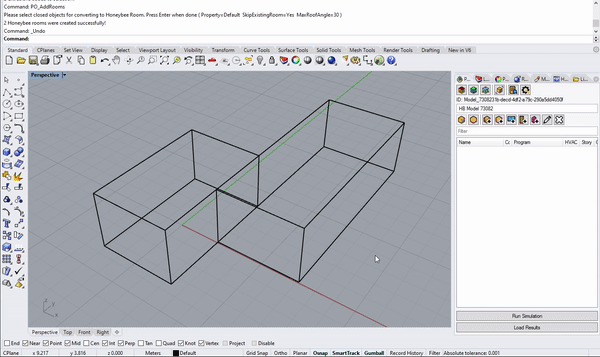

Convert closed geometries to rooms. New created rooms contains default energy and radiance properties. Use "Pollination" command to open Room Manager to check and edit each room.

Options

• Property

  override the default room properties, such as construction set, program type, hvac, and internal loads. (default: Default)

• SkipExistingRoom

  set to Yes to only convert non-room geometries (default: Yes)

• MaxRoofAngle

  change the max angle for how much a surface is tilted will be set to roof type. Any surface tilted between 0 and max angle will be set to roof (default: 30)

See Also

• PO_AddRoomsByLayer

• PO_DrawRoom
